High intensity focused ultrasound or HIFU is a medical procedure that applies high intensity focused ultrasound energy to locally heat and destroy diseased or damaged tissue through ablation. Our HIFU technology has been used and shown great result in cosmetic surgery performance.

Features and apllications:
*high intensity focused ultrasound energy can be used for cosmetic therapy;
* Focus point can be designed according to client’s requirements;
* It has great stability, long life span
*Use ABS housing material

小型HIFU美容探头

特点和用途:
*高强度聚焦超声主要用于HIFU美容、减肥;
*聚焦点可以根据用户要求设计;
*稳定性好、工作寿命长;
*采用 ABS外壳材料。

Category:

Description

Please see the below table for more data. HIFU用于美容、减肥

编号 标称工作频率 敏感部分直径mm 聚焦曲率半径mm 工作频率标称水中 阻抗Z(Ω) 实际测量频率(MH) 工作频率实际水中 阻抗Z(Ω PZT 适合于Application
1 2MH Φ39 SR38 55 2.1-2.2 45-55 B 减肥 Weight loss
2 4MH Φ19 SR16.4 ~70 4.3-4.5 58-75 A 美容 Beauty
3 4MH Φ19 SR19.4 ~40 4.35-4.55
3.9-4.0
35-40* A 美容 Beauty
4 4MH Φ19 SR24 ~50 4.35-4.55 35-50 B 减肥 Weight loss
5 7MH Φ19 SR16.4 ~20 7.2-7.4 17-20 A 美容 Beauty
6 7MH Φ19 SR19.6 ~20 7.15-7.35 15-20 A 美容 Beauty

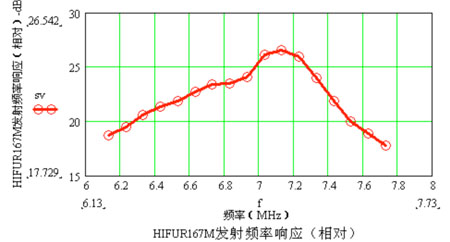

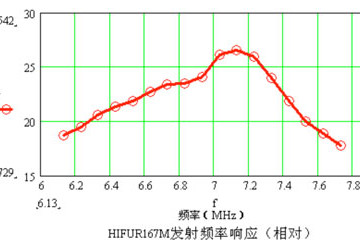

HIFU R16 7M发射频率响应(相对)


HIFU-R16-7M-fig1


f =7.64MHz (7MHz)

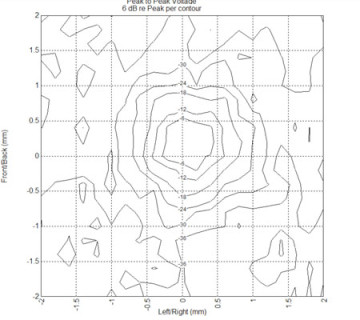

HIFU-R16-7M-fig2

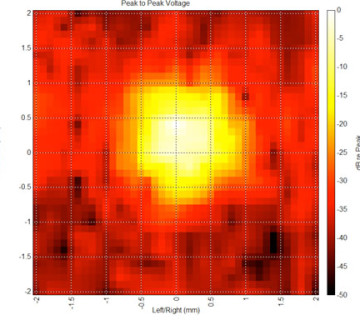

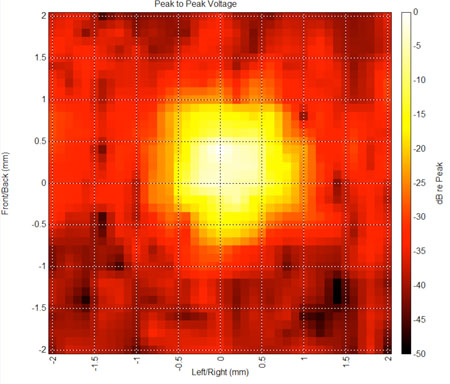

HIFU-R16-7M-fig3

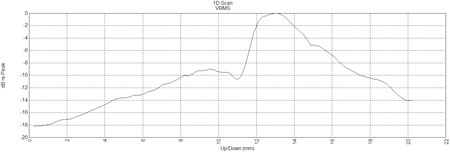

HIFU-R16-7M-fig4
